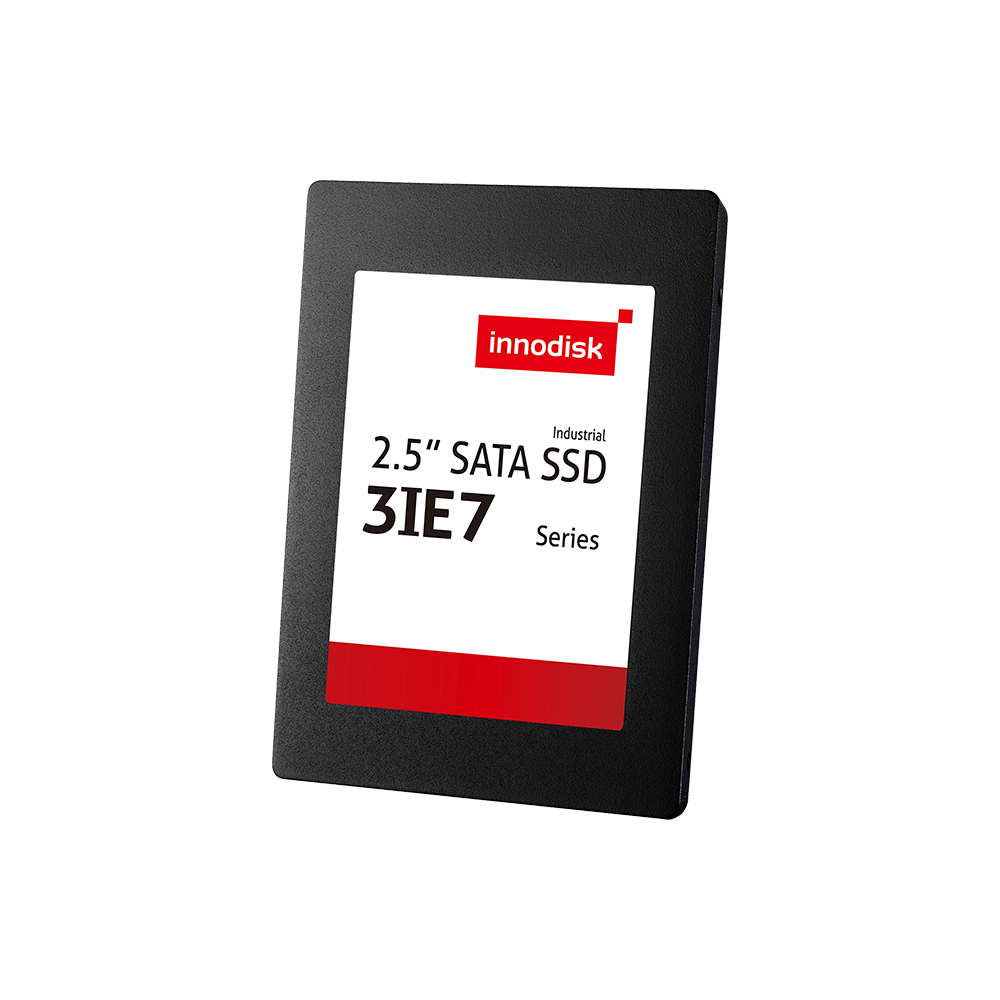

2.5" SATA SSD 3IE7

2.5" SSD

Ultra iSLC Solution

Features

• Up to 100K P/E cycle, extending the lifespan by 33x
• Utilizes Ultra iSLC Technology
• Equipped with 112-layer 3D TLC NAND Flash
• Supports temperatures -40°C to 85°C
• 5 years warranty and longevity commitment

Download Datasheet

Model Name

2.5" SATA SSD 3IE7

Flash Type

iSLC (3D TLC)

Interface

SATA III 6.0 Gb/s

Form Factor

2.5" SSD

Capacity

20GB ~ 640GB

Sequential R / W (MB/sec, max.)

560 / 510

P/E Cycle

30,000 / 100,000

TBW (Max.)

40,000

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

2.2W

Max. Channels

4

External DRAM Buffer

N

Feature

AES, H/W Write Protect, S.M.A.R.T.

Dimension (W x L x H/mm)

69.8 x 100.0 x 6.8

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years
