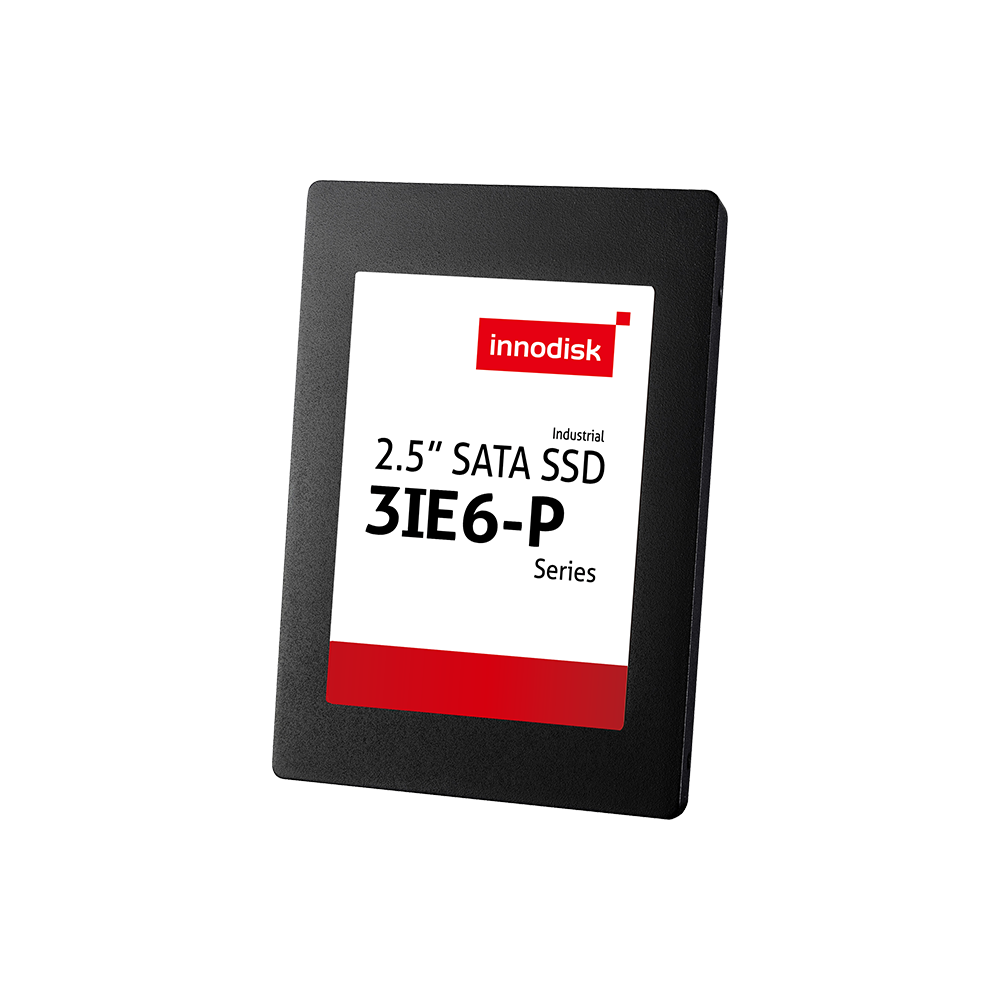

2.5" SATA SSD 3IE6-P

2.5" SSD

iSLC Solution

Features

2.5" SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
AES-256 encryption
iData Guard for abnormal power failure
PLP (iCell) technology for data protection (optional)
iPower Guard for protecting unstable start up and shut down
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5" SATA SSD 3IE6-P is SATA III 6.0Gb/s solid state disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

2.5" SATA SSD 3IE6-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	2.5" SATA SSD 3IE6-P
Flash Type	iSLC (3D TLC)
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	80GB ~ 1.28TB
Sequential R / W (MB/sec, max.)	550 / 510
P/E Cycle	30,000
TBW (Max.)	35,712
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	5.6W
Max. Channels	4
External DRAM Buffer	Y
Feature	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	69.8 x 100.0 x 7.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
80GB	DHS25-80GM71EC3QF	DHS25-80GM71EW3QF
160GB	DHS25-A60M71%C*QF(P)	DHS25-A60M71%W*QF(P)
320GB	DHS25-D2GM71%C*QF(P)	DHS25-D2GM71%W*QF(P)
640GB	DHS25-F4GM71%CAQF(P)	DHS25-F4GM71%WAQF(P)
1.28TB	DHS25-1T2M71KCAQFP	DHS25-1T2M71KWAQFP

%. E : 64 layers 3D TLC / K : 112 layers 3D TLC
*. 1 ~ 9 / A ~ Z : PCB version control
P : iCell (Optional)

For more information, please contact our support.
