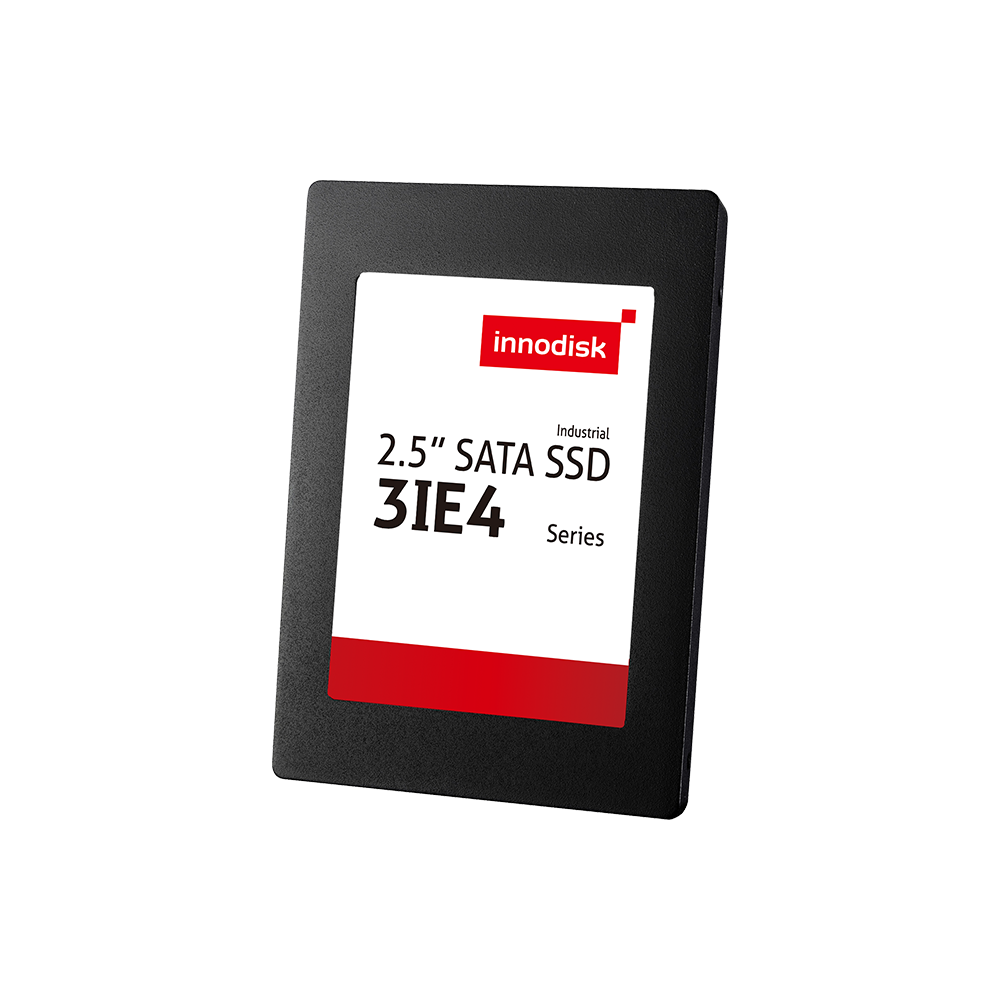

2.5" SATA SSD 3IE4

2.5" SSD

8GB ~ 128GB

Features

• 2.5" SATA III solution for industrial field
• 7mm height mechanical design
• DRAM-less, high-level data integrity
• Excellent IOPS boosts system performance
• Built-in thermal sensor
• Supports S.M.A.R.T., TRIM, and NCQ
• Supports wide temperature from -40°C to 85°C

Model Name

2.5" SATA SSD 3IE4

Flash Type

iSLC (MLC)

Interface

SATA III 6.0 Gb/s

Form Factor

2.5" SSD

Capacity

8GB ~ 128GB

Sequential R / W (MB/sec, max.)

530 / 380

P/E Cycle

20,000

TBW (Max.)

1,388

Storage Temperature

-55°C ~ 95°C

Max. Power Consumption

0.8W

Max. Channels

2

External DRAM Buffer

N

Feature

PLP (iCell), S.M.A.R.T.

Dimension (W x L x H/mm)

69.85 x 100.1 x 6.9

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years
