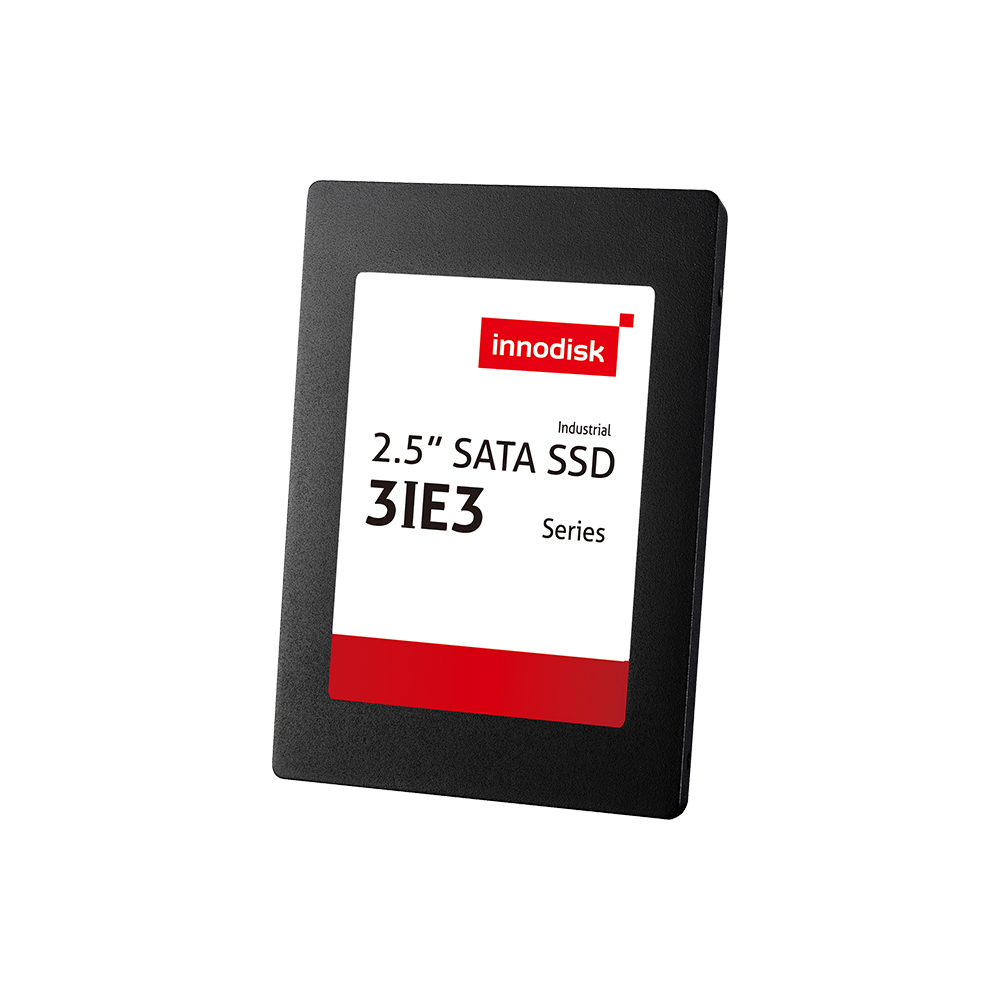

2.5" SATA SSD 3IE3

2.5" SSD

8GB ~ 256GB

Features

2.5" SATA III solution for industrial field
7mm height mechanical design
iSMART disk health monitoring
High IOPS to enhance boot up timing
DRAM-less, no data loss concern
iData Guard Protection

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5" SATA SSD 3IE3 is SATA III 6.0Gb/s Flash based disk with iSLC technology, which delivers excellent performance and reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

2.5" SATA SSD 3IE3 not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

SPECIFICATIONS

Model Name	2.5" SATA SSD 3IE3
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	440 / 240
P/E Cycle	20,000
TBW (Max.)	694
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.8W
Max. Channels	4
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	69.85 x 100.1 x 7.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHS25-08GD09BC1&C	DHS25-08GD09BW1&C
16GB	DHS25-16GD09BC*&C	DHS25-16GD09BW*&C
32GB	DHS25-32GD08BC3QC	DHS25-32GD08BW3QC
64GB	DHS25-64GD08BC3QC	DHS25-64GD08BW3QC
128GB	DHS25-A28D08BC3QC	DHS25-A28D08BW3QC
256GB	DHS25-B56D08BC1QC	DHS25-B56D08BW1QC

*. PCB version control

&. S : 1 channel / D : 2 channels
