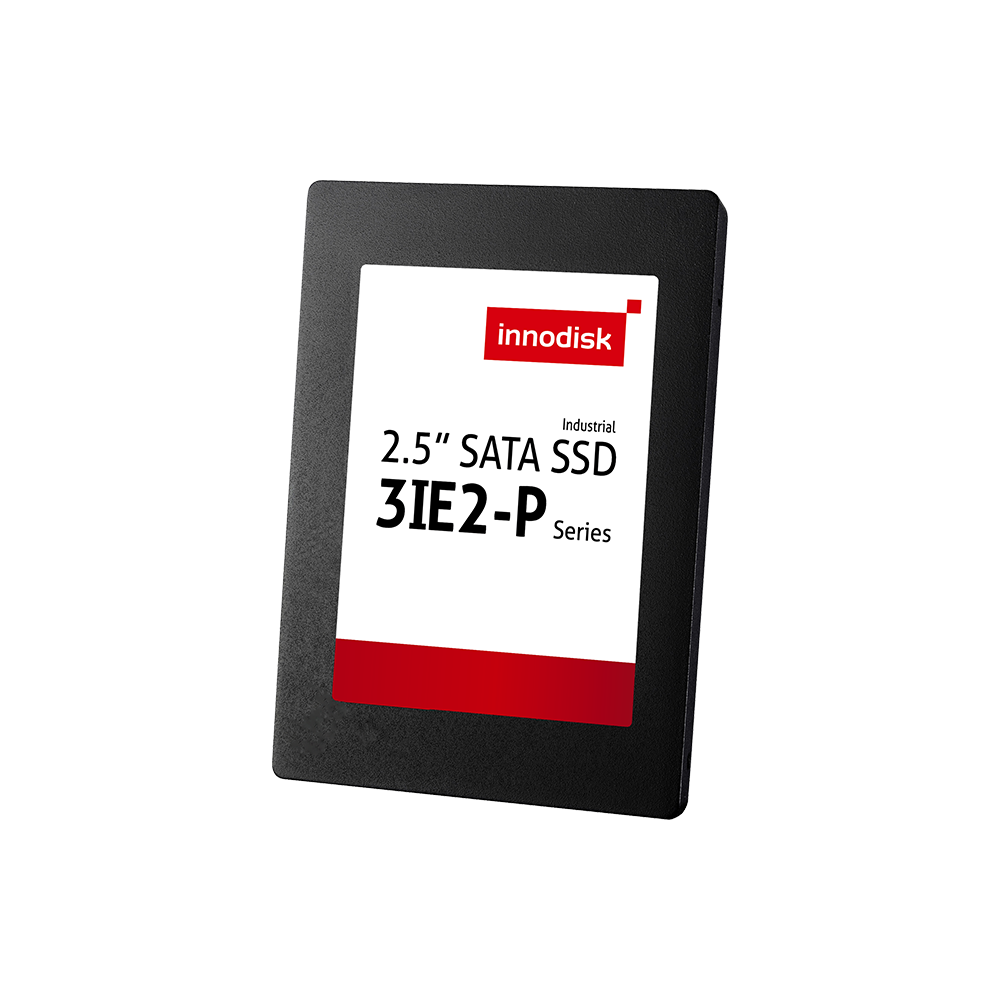

2.5" SATA SSD 3IE2-P

2.5" SSD

8GB ~ 512GB

Features

2.5" SATA III solution for industrial field
7mm height mechanical design
iSMART disk health monitoring
High IOPS to enhance boot up timing
iData Guard Protection

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5" SATA SSD 3IE2-P is SATA III 6.0Gb/s Flash based disk with iSLC technology, which delivers excellent performance and reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

2.5" SATA SSD 3IE2-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

SPECIFICATIONS

Model Name	2.5" SATA SSD 3IE2-P
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	8GB ~ 512GB
Sequential R / W (MB/sec, max.)	530 / 450
P/E Cycle	20,000
TBW (Max.)	10,000
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.3W
Max. Channels	4
External DRAM Buffer	Y
Feature	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	69.85 x 100.1 x 7.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHS25-08GD81BC3DC	DHS25-08GD81BW3DC
16GB	DHS25-16GD81BC3&C	DHS25-16GD81BW3&C
32GB	DHS25-32GD81BC*QC	DHS25-32GD81BW*QC
64GB	DHS25-64GD81BC*QC	DHS25-64GD81BW*QC
128GB	DHS25-A28D81BC3QC	DHS25-A28D81BW3QC
256GB	DHS25-B56D81BC1QC	DHS25-B56D81BW1QC
512GB	DHS25-C12D81BCAQC	DHS25-C12D81BWAQC

*. PCB version control

&. D : 2 channels / Q : 4 channels
