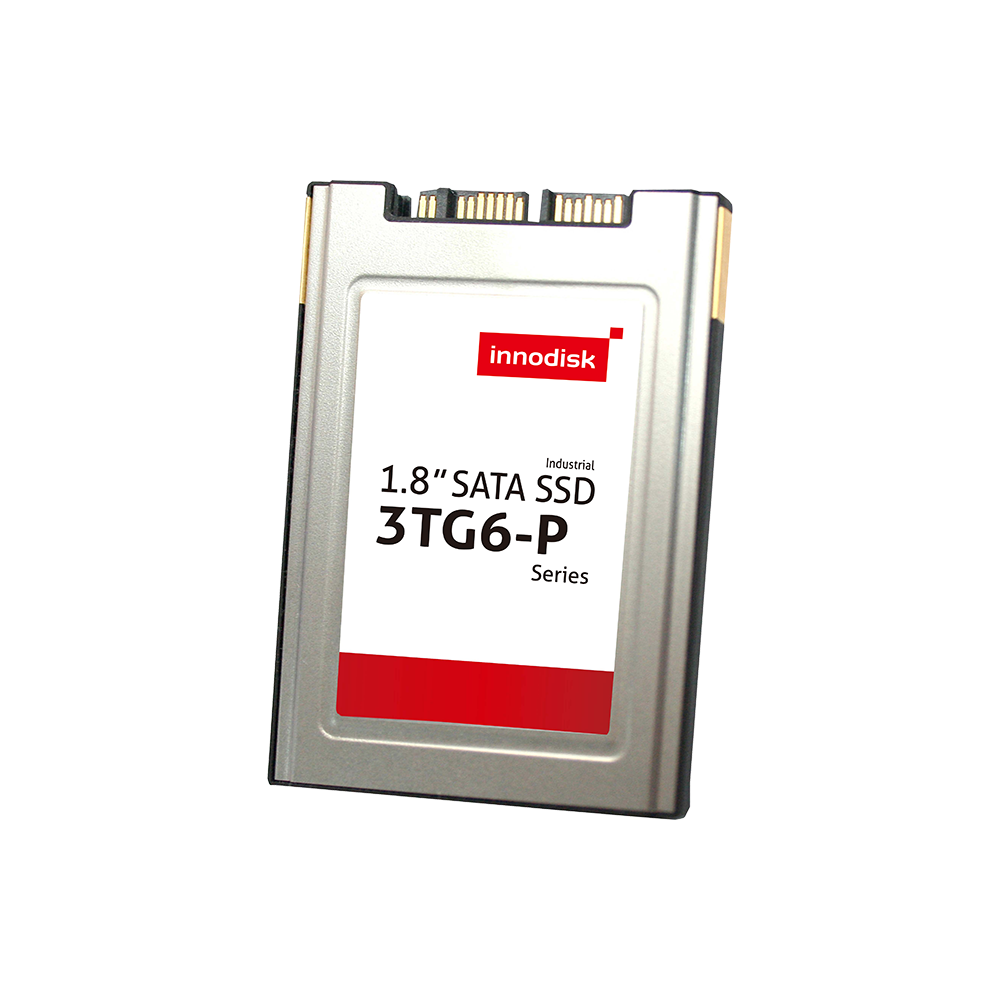

1.8" SATA SSD 3TG6-P

1.8" SSD

128GB ~ 1TB

Features

1.8" SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
AES-256 encryption
End-to-End Data Path Protection
iData Guard for abnormal power failure
iCell technology for data protection (optional)
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 1.8" SATA SSD 3TG6-P is a SATA III 6.0Gb/s solid state disk that delivers excellent performance, especially in random data transfer rates and offers reliability, making it the ideal solution for a variety of applications, including embedded systems, industrial computing, and enterprise applications.

The 1.8" 3TG6-P SSD not only delivers unmatched performance but is also designed with Innodisk's proprietary technical know-how to ensure data integrity and the highest levels of reliability.

SPECIFICATIONS

Model Name	1.8" SATA SSD 3TG6-P
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	1.8" SSD
Capacity	128GB ~ 1TB
Sequential R / W (MB/sec, max.)	560 / 520
P/E Cycle	3,000
TBW (Max.)	1,172
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	4.1W
Max. Channels	4
External DRAM Buffer	Y
Feature	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	54.0 x 78.5 x 5.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DGS18-A28M71EC1QF	DGS18-A28M71EW1QF
256GB	DGS18-B56M71EC1QF	DGS18-B56M71EW1QF
512GB	DGS18-C12M71EC1QF	DGS18-C12M71EW1QF
1TB	DGS18-01TM71EC1QF	DGS18-01TM71EW1QF

For more information, please contact our support.
