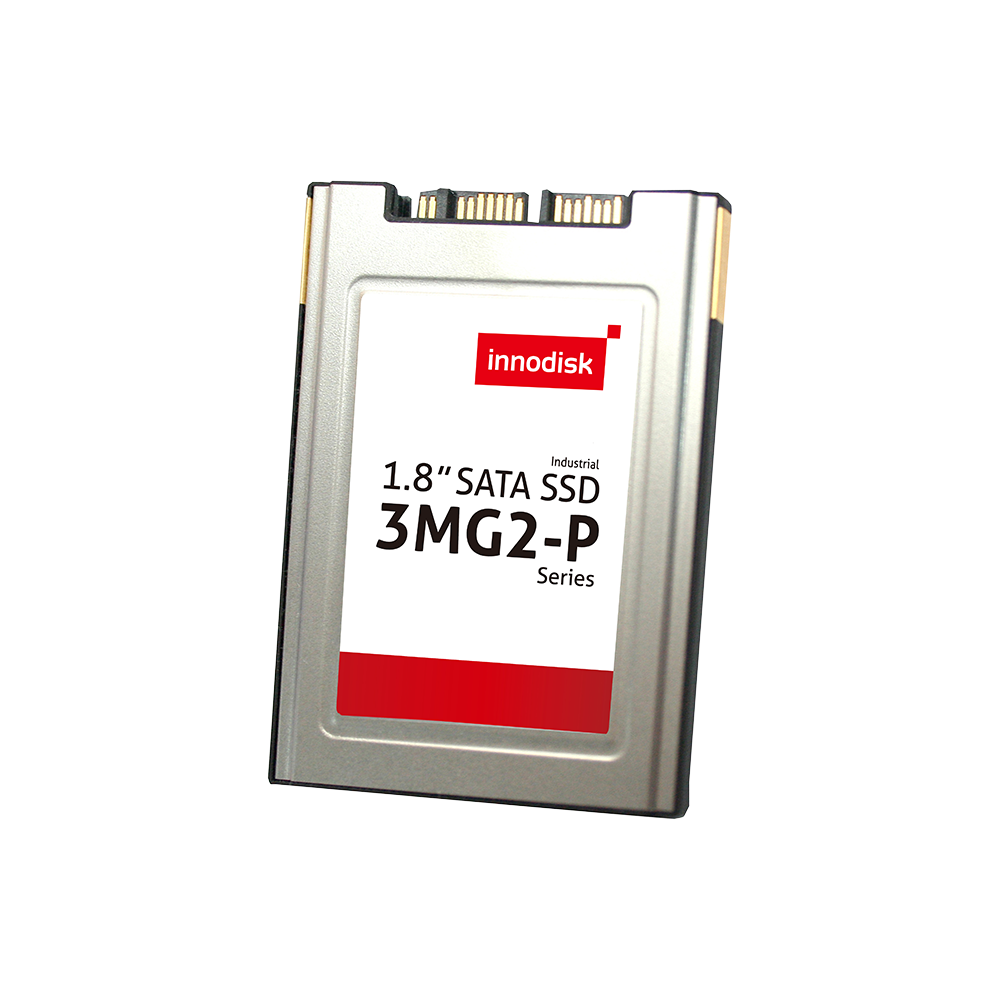

1.8" SATA SSD 3MG2-P

1.8" SSD

256GB ~ 1TB

Features

SATA III solution for industrial field
High IOPS
Intelligent error recovery system
iSMART disk health monitoring
iData Guard for abnormal power failure
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 1.8" SATA SSD 3MG2-P is SATA III 6.0Gb/s Flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

1.8" SATA SSD 3MG2-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

SPECIFICATIONS

Model Name	1.8" SATA SSD 3MG2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	1.8" SSD
Capacity	256GB ~ 1TB
Sequential R / W (MB/sec, max.)	520 / 450
P/E Cycle	3,000
TBW (Max.)	1,172
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	3.2W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	54.0 x 78.5 x 5.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
256GB	DGS18-B56D81BCAQC	DGS18-B56D81BWAQC
512GB	DGS18-C12D81BCAQC	DGS18-C12D81BWAQC
1TB	DGS18-01TD81BCBQC	DGS18-01TD81BWBQC
